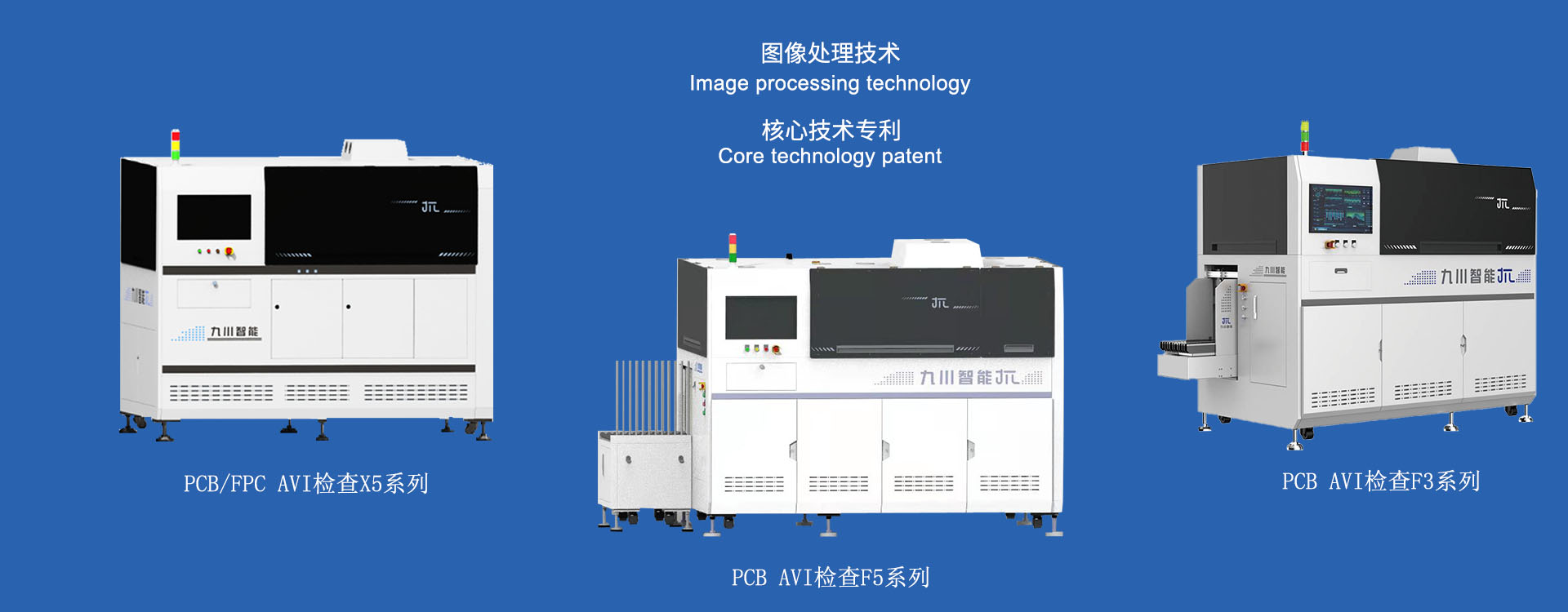

PCB/FPC检测方案F3系列
PCB/FPC detection scheme F3 series
技术参数(Technical parameters)：
型号 | F3-18 | F3-18L | F3-25 | F3-20 |
CCD解析度(The CCD resolution） | 18μm | 18μm | 25μm | 20μm |
检测范围(Detection range) | 50*100mm-280*500mm | 50*100mm-350*500mm | 50*100mm-350*500mm | 50*100mm-300*500mm |
| 测板厚度（The thickness of the plate) | 0.3-5mm | |||
| 双拼板范围(Double board range) | ≤135mm | ≤170mm | ≤170mm | ≤140mm |
检测效率（单片板）(Detection efficiency (single plate)) | 最大产能1000PNL/H(Maximum capacity 1000PNL/H) | |||
检测效率（双拼板）(Detection efficiency (double board)) | 最大产能2000PNL/H(Maximum capacity2000PNL/H) | |||
资料来源(source) | CAM+设备图形扫描(CAM+ device graph scanning) | |||
图像接受处理方式(Image reception processing mode) | 彩色color（R/G/B)一次成像(Color color (R/G/B) one time imaging) | |||
缺陷确认方式(Method of defect confirmation) | AVI扫描检测+检修站确认(AVI scanning inspection + maintenance station confirmation) | |||
板子运送方式(Board delivery mode) | 皮带式传送(Belt conveyance) | |||
对位方式(Para way） | 自动对位(Automatic registration) | |||
上料模式（Feeding mode) | 不间断上下料(Continuous loading and unloading) | |||
进板模式(Into the plate pattern) | 单片+双拼(Single piece + double) | |||
图像处理方式(Image processing mode) | 对比法+AI识别(Contrast method +AI recognition) | |||
低频缺陷检测能力(Low frequency defect detection capability) | 95%以上（压痕，凹点，凸点等）(More than 95% (indentation, pits, bumps, etc.) | |||
| 正反面检测（Positive and negative detection） | 支持双面检测（Support for double-sided detection） | |||
| 下料方式（Loading and unloading mode） | 堆叠式上下往复不间断上料（Stacking type up and down reciprocating continuous feeding） | |||
| 电压（voltage） | 单相三线（AC220V）+10%50HZ | |||
| 运行电流（Running current） | 10A | |||
| 气压（Air pressure） | 0.6-0.8MPA | |||
设备重量(quipment weight） | 1500KG | |||
设备尺寸(The equipment size) | L2080mm×W1150mm×H1890mm | |||
检查项目(Check the project):
绿油上焊盘，漏铜，金面凹陷，凸铜，绿油发白，断绿油桥，文字缺失，文字模糊，塞孔，氧化，污染，异物，孔破，外形变异等。
Green oil on the pad, copper leakage, gold surface depression, convex copper, green oil white, broken green oil bridge, text missing, text fuzzy, plug hole, oxidation, pollution, foreign body, hole broken, shape variation, etc.
适用板范围(Scope of applicable plate)：
喷锡板，沉金板，镀金板，沉银板，沉锡板，OSP板；适应所有板面颜色。
Tin-spraying plate, gold-plated plate, gold-plated plate, silver plate, tin plate, OSP plate; Applicable to all board colors.
